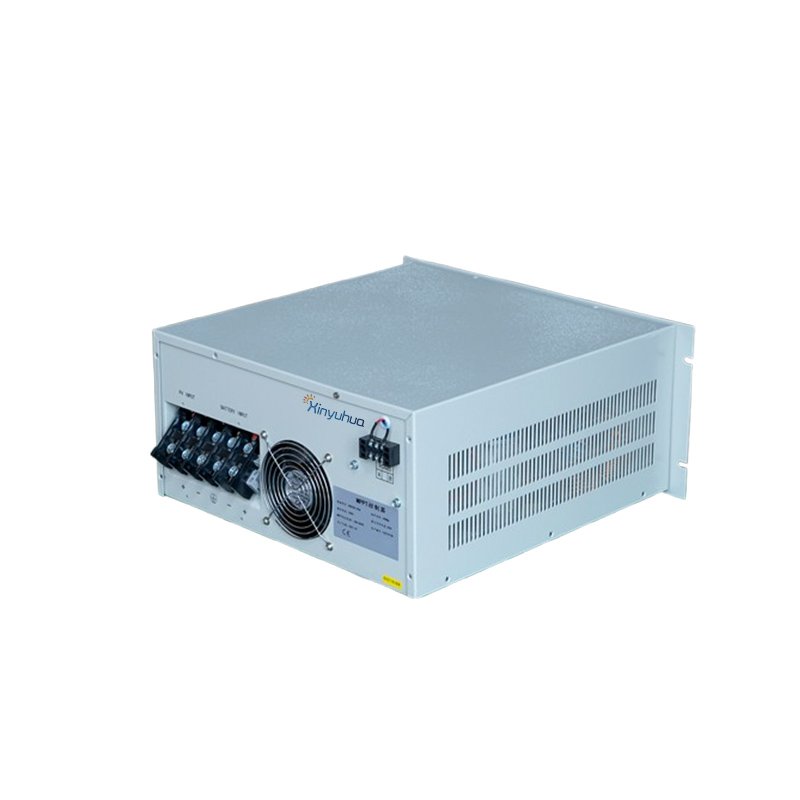

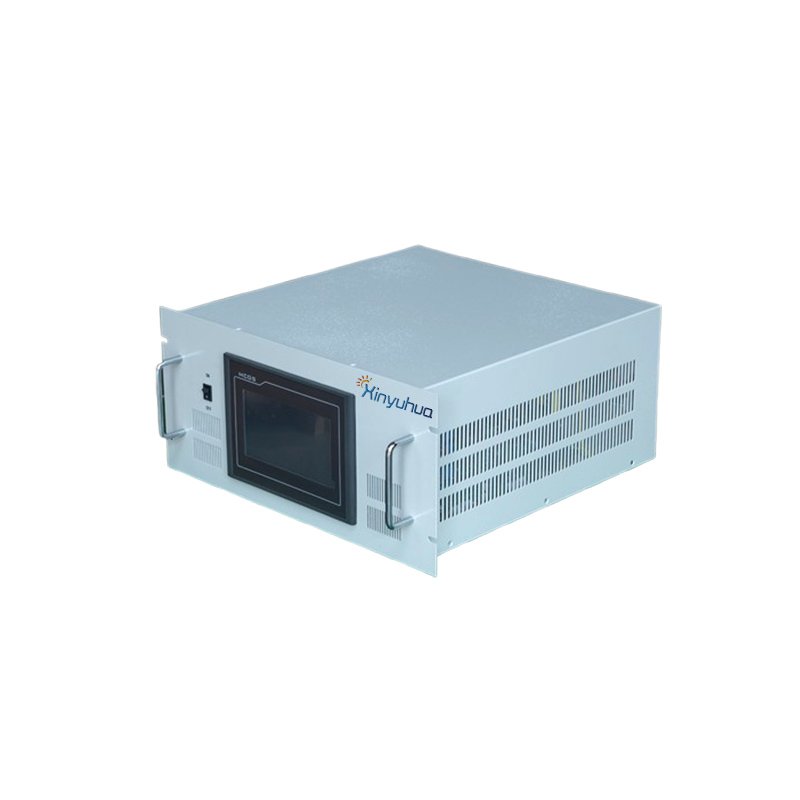

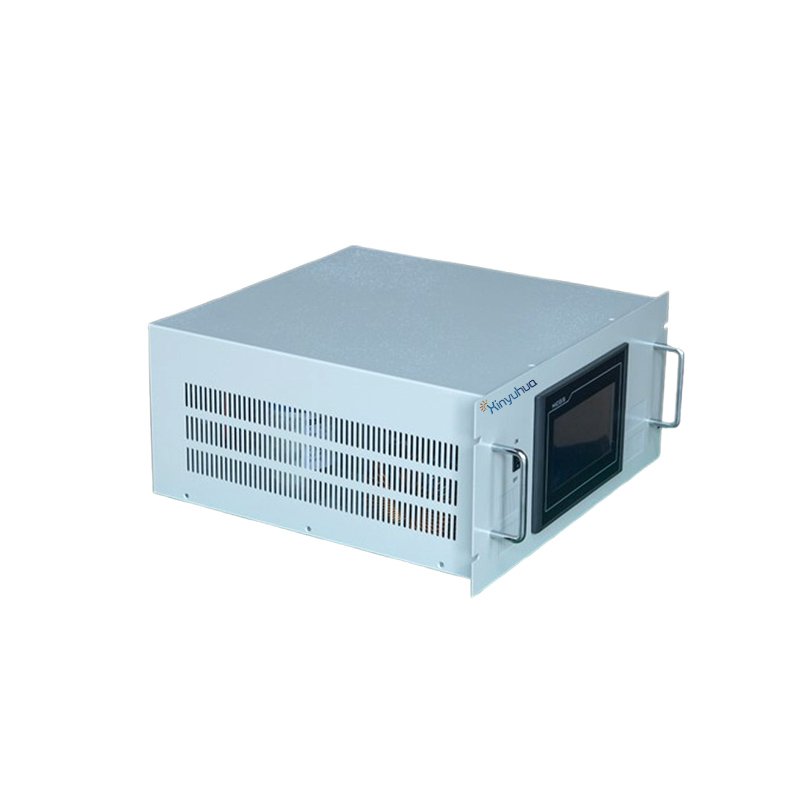

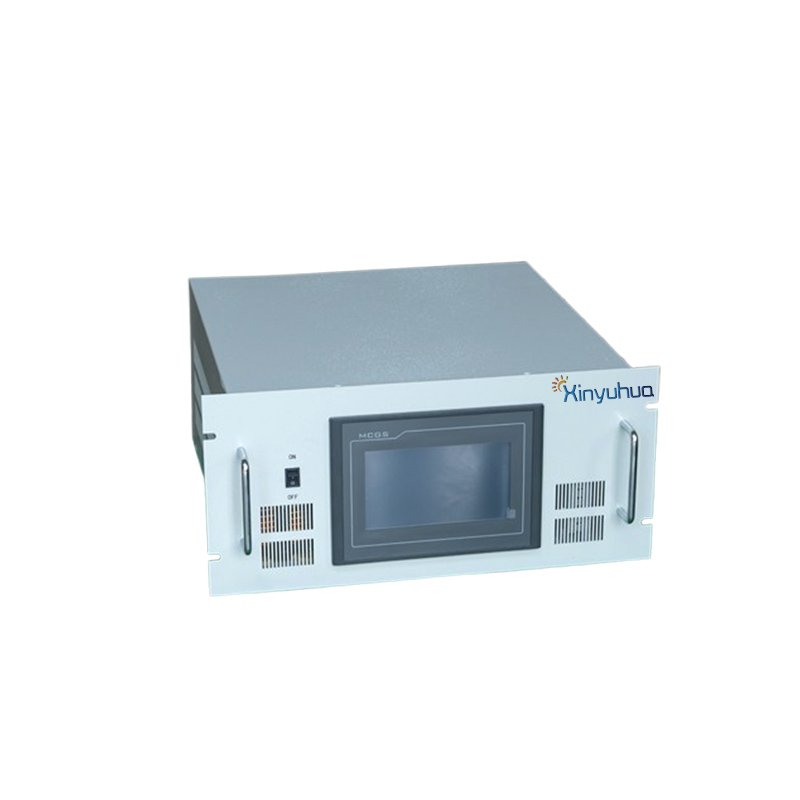

MPPT solar controller is designed for solar off-grid system, solar power station and other systems. The new generation of MPPT controller selection 16-bit digital signal processing chip. It adopts advanced all-digital intelligent tracking algorithm to obtain the maximum power point of solar modules, and real-time output current, voltage detection, to ensure the normal battery charging and improve the utilization of components. At the same time the system has short-circuit, overload, and a unique battery automatic shutdown, recovery and other full-featured protection measures.
Features:
1. All-digital intelligent tracking algorithm, the fastest access to solar modules maximum power point, the conversion efficiency up to 95%, high utilization of PV modules.
2. Increase the charging strategy (first constant current, then constant pressure, the last float), protect the battery and extend its service life.
3. All-digital intelligent control, with remote control.
4. Standard MODBUS communication protocol to facilitate background detection.
5. With overcharge, overload, short circuit and other sound protection, so that the machine is running more reliable.
6. Wide input voltage range, to solve the problem of components should not be matched, selection more convenient.
7. With lightning protection, solar anti-reverse charge, battery reverse, open circuit protection.
8. Small size, light weight, rack design.
9. Small power and DC power distribution cabinet group screen, high power can be more than a parallel group counters, easy maintenance.
10. Single maximum 100A, can be expanded according to demand.
11. Touch screen display, beautiful atmosphere.
Teachnic parameter:
| Model | XSD220-50A | XSD220-100A | XSD384-100A | XSD480-100A | |
| Controoler spec. | rated voltage(V) | 220 | 384 | 480 | |
| Controoler spec. | rated charging current(A) | 50 | 100 | 100 | 100 |
| Controoler spec. | Max. input voltage from battery(V) | 300 | 550 | 600 | |
| Controoler spec. | Max. Input solar voltage(V) | 500 | 850 | 900 | |
| Controoler spec. | Max. Input solar power(W) | 11000 | 22000 | 38400 | 48000 |
| Controoler spec. | charging mode | 1 | |||
| Controoler spec. | battery float voltage（Vdc） | MPPT | |||
| Controoler spec. | battery charging average voltage（Vdc） | 247 | 440 | 550 | |
| Controoler spec. | self loss（mA） | ＜300 | |||
| Controoler spec. | communication | RS485 | |||
| Controoler spec. | rated efficiency | ≥95% | |||
| Controoler spec. | protect degree | IP20 | |||
| Working enviroment | 工working temperature | -20℃～+50℃ | |||
| Working enviroment | relative humidity | ＜90% No condensing | |||
| Working enviroment | Altitude | 4000m | |||
| Working enviroment | Pressure endurance insulation | 1500VAC，1minute | |||
| Parallel No. | No limit | ||||
| Noise（1meter） | ≤50dB | ||||
| Protection function | Protection for input connecting contrary, input short of voltage, output over load, output short circuit and over heat. | ||||
| protect breaker | need extra input and output breaker | ||||
| dimension（W*L*H）mm | 600*600*1960mm | ||||
