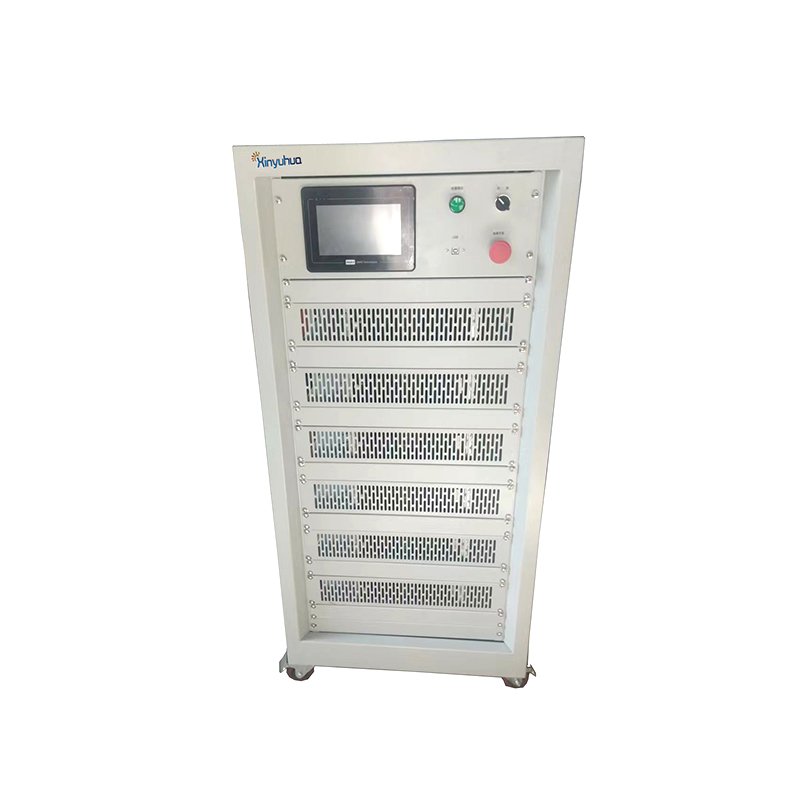

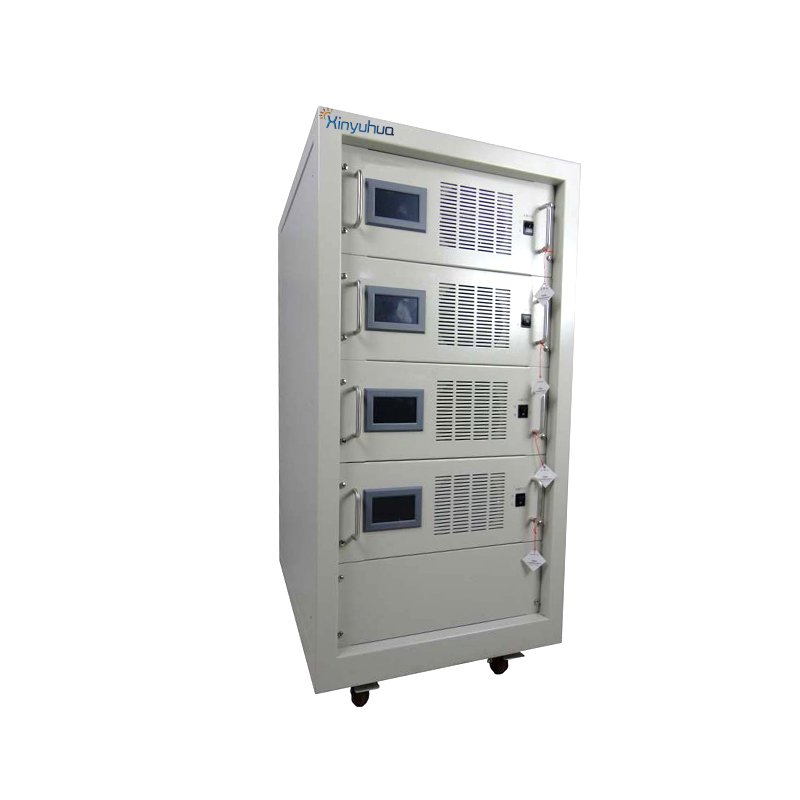

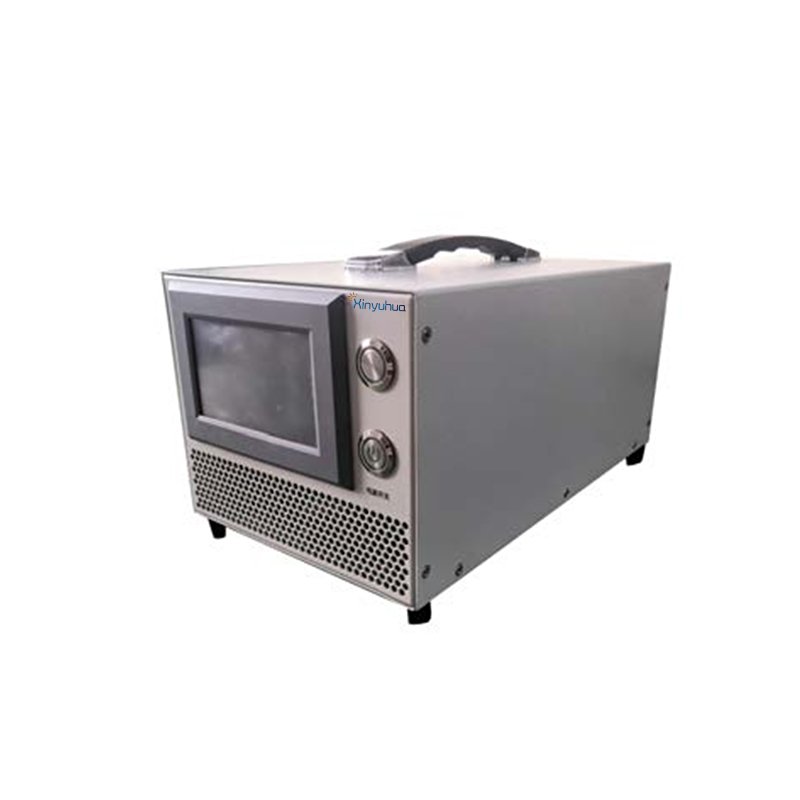

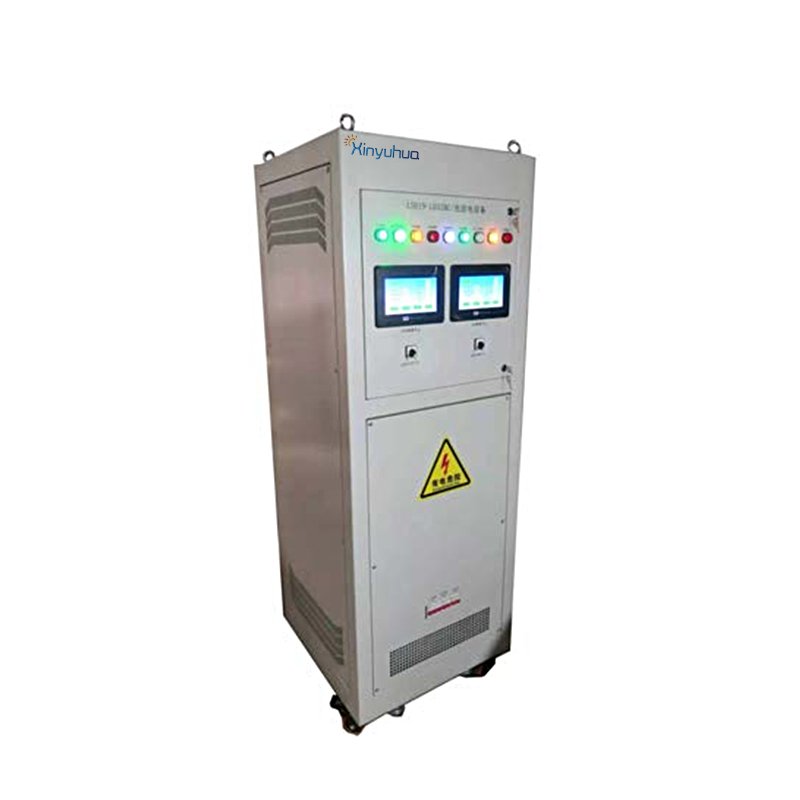

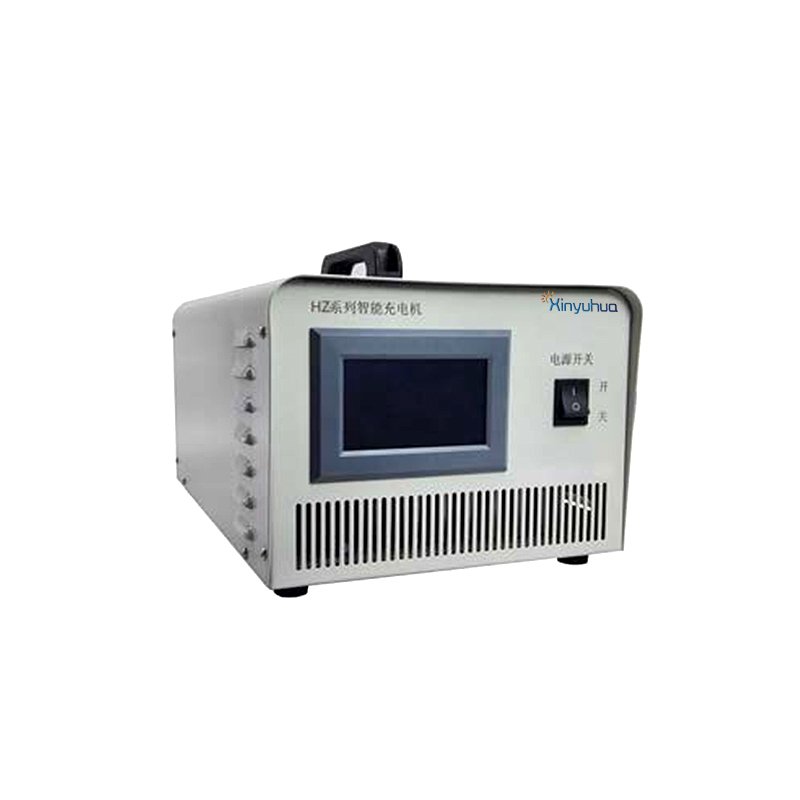

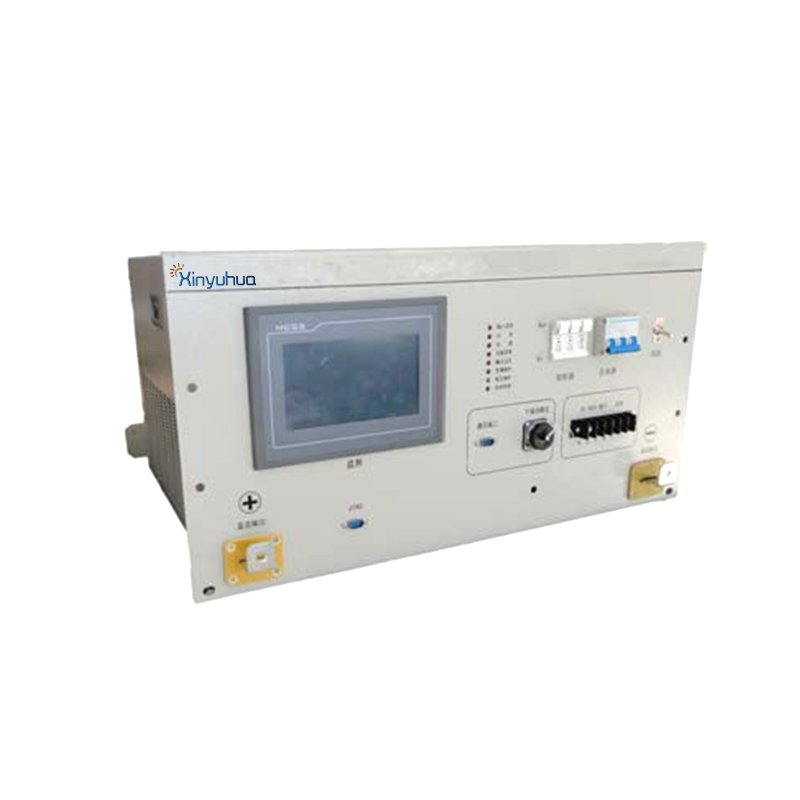

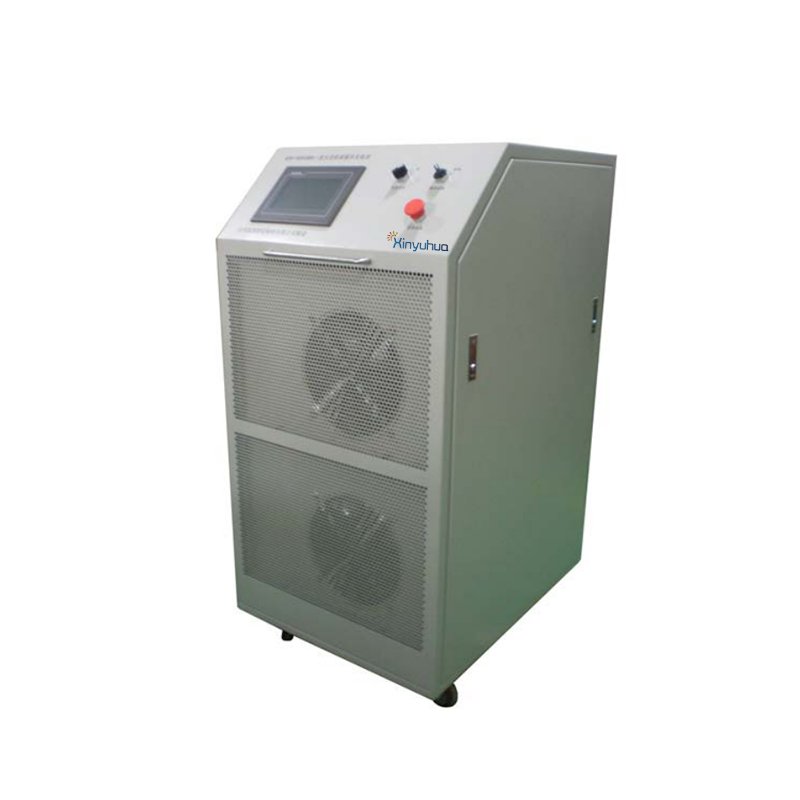

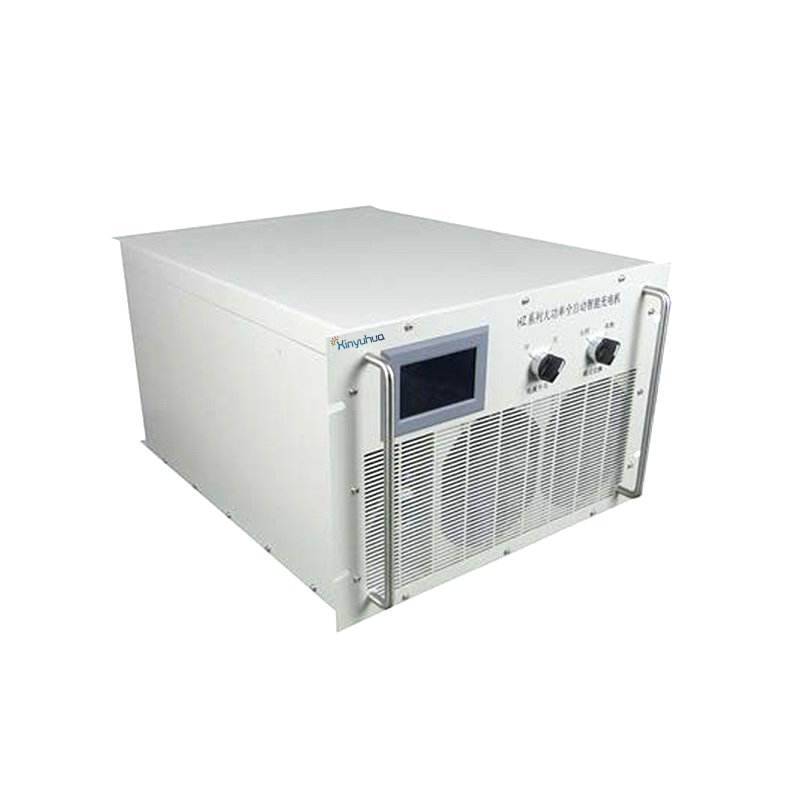

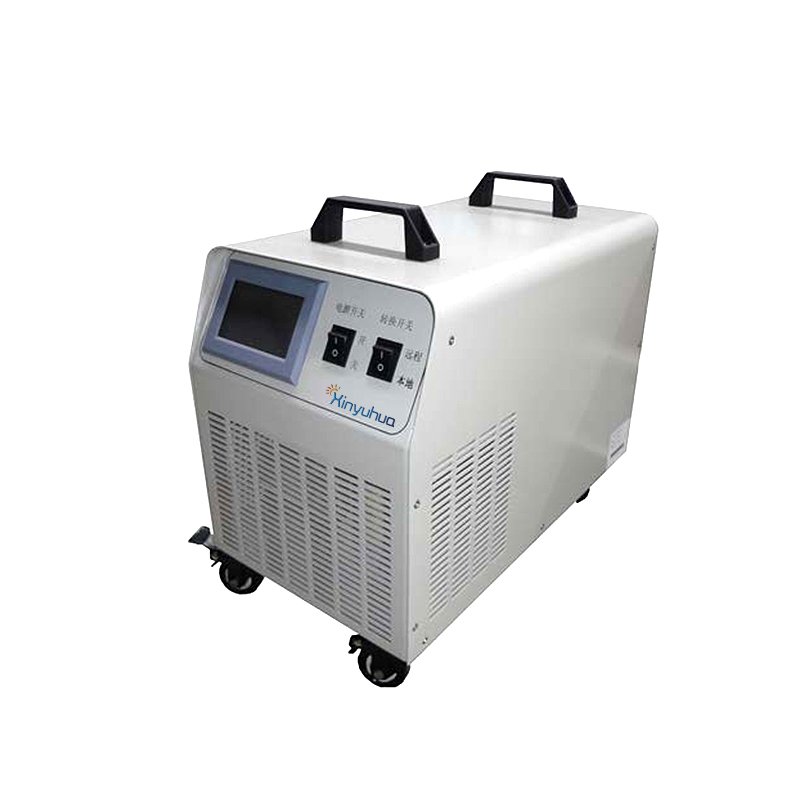

AC to DC Rectifier

Recitifier

Product Introduction:

XYH series intelligent AC to DC rectifier. It is widely used in communication, electric power, rail transit and other industries. The core components are imported first-line brands. High speed CPU chip control circuit is adopted, and high-frequency switching power supply technology is combined with microcomputer control technology. The product integrates charging, discharging and activation, data storage and multiple charging and discharging modes. It is applicable to the overhaul and maintenance of batteries and supercapacitors. The equipment has, complete functions, multi-purpose, reducing enterprise costs, 7-inch color touch screen control, all English display, simple operation, reducing personnel labor intensity.

With fault self diagnosis and perfect protection function, it has outstanding characteristics such as convenient operation, high reliability, high efficiency and energy saving, and can be used in various special occasions.

Inquire now Add To Inquiry Basket

product details

Item		Spec.
Input	Voltage/frequency	AC220V(1P2W) or AC 380V (3P4W) AC 110Vac optional
Input	Efficiency	≥94%(Rated input 100%LOAD)
Input	Power factor	≥0.99(Rated input 100%LOAD)
Output	Rated DC	48V	106V	200V	400V	600V	750V	1000V
Output	Voltage	48V	106V	200V	400V	600V	750V	1000V
Output	Charge discharge voltage range	0-60V	0-106V	0-200V	0-400V	0-600V	0-750V	0-1000V
Output	Max. output current	300A	400A	400A	200A	200A	200A	200A
Output	Output voltage accuracy	<±1%
Output	Output current accuracy	<±1%
Output	Output ripple	<±2%
Output	Output delay actual	0.5S-2S
Output	Input overvoltage protection value	466V±2Vac
Output	Output overvoltage protection value	<36V
Output	Output overcurrent protection value	110%（Automatic recovery）
Output	Overheat protection value	85°C（It can recover automatically, and the temperature drops to 60°c to resume work）
Output	Not connected to battery protection	Automatic recovery
Output	Battery reverse connection protection	Automatic recovery
Output	Fan fault protection	Derating operation
Output	Short circuit protection	Manual recovery or restart recovery
work environment	humidity	93%RH
work environment	Operating temperature range	-20°C --+45°C
work environment	Degree of protection	P21
work environment	Altitude	0-4000m
Electrical insulation	Isolation voltage	Input—output 2500VDC				Leakage current limit 10mA Test for 1 minute
Electrical insulation	Isolation voltage	Input—cabinet 2500VDC				Leakage current limit 10mA Test for 2 minute
Electrical insulation	Isolation voltage	Input—cabinet 2500VDC				Leakage current limit 10mA Test for 3 minute
Electrical insulation	insulation resistance	Input / output terminal to housing ≥ 10m Ω 250C, humidity 60%rh
Electrical insulation	Note: short circuit the input line and the output line during the test
Communication function	Communication function(one out of three)	RS232/RS485/CAN2.0
