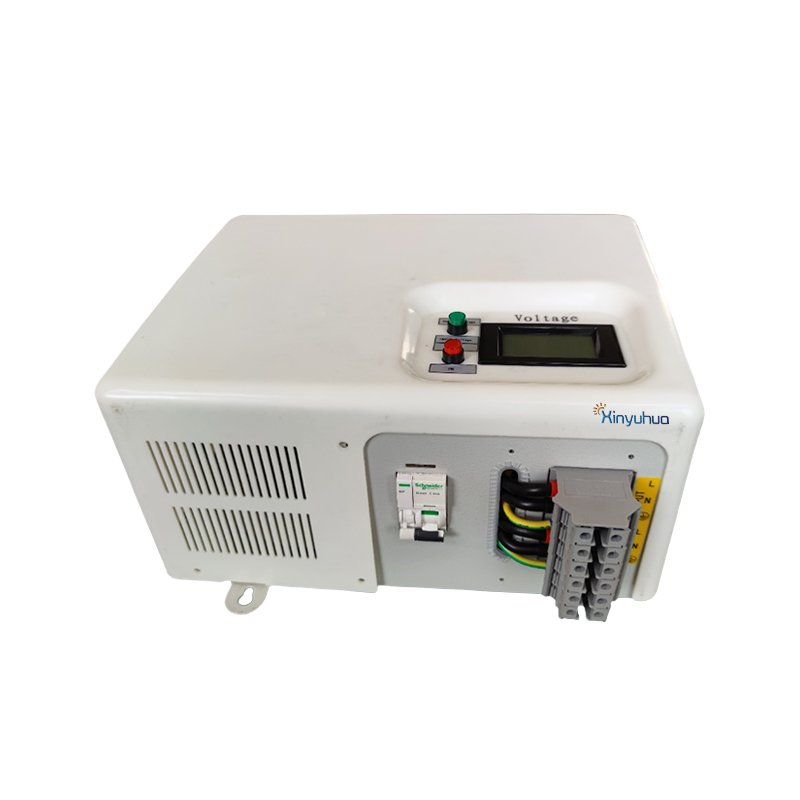

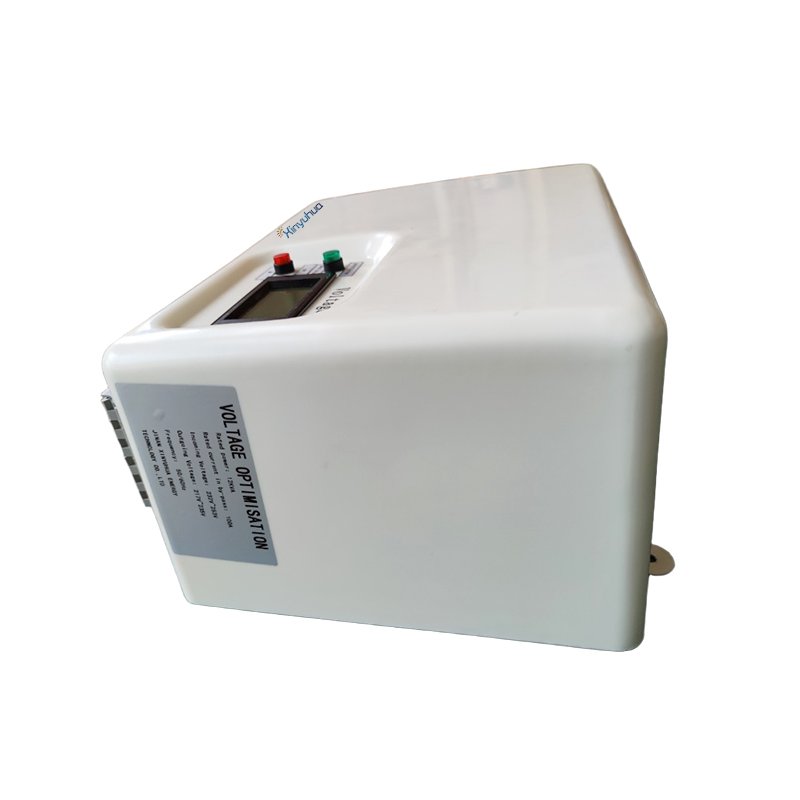

Reliable XYH 12kVA Single Phase Voltage Optimisation for Energy Saving

Chapter I Foreword

Introduction

The declared electricity supply in the United Kingdom and Austrilia is now, as a result of European Harmonization in 1995, 230V with a tolerance of +10% to -6%. This means that supply voltage can theoretically be anywhere between 216.2V and 253V depending on local conditions. However, the average voltage supplied from the national grid is 242V, compared to the nominal European voltage of 230V. The average supply voltage in Northern Ireland is around 239V, and 235V in the Republic of Ireland.

Notes

This statement allows you to easily operate and maintain the system. The installation, the use and the maintenance of this unit must be in strict compliance with this manual

1. Be sure to read carefully before using

2. In order to avoid injuries to personal safety, the unit must have solid fixings

3. The unit must not be installed in areas of high humidity or temperature, and not where there are flammable gases

4. Opening the case of the unit invalids the warranty

Unpacking, storage and handing

Unpacking

The voltage optimisation passed a rigorous inspection before leaving the factory, but in transit may be damaged. After unpacking, check the;

1. voltage optimisations for damage

2. User's manual is present

3. Certification is present

4. Products supporting parts and order other accessories(1 terminal cover,1 switch cover)

If there is any damage/missing parts please inform us.

Storage

This product should be stored with the following considered.

1. Placed in a dry and well ventilated place

2. Ambient temperature  -10℃ ~ 40oC

3. Relative humidity less than 90%, and away from drops of water condensation

4. Away from corrosive gases, liquids

Handling

In the handling process, the product should avoid strong vibrations and bumps, always carry the box   packaging as stated on the box.

ChapterⅡ Product introduction

Main Specifications

Schematic diagram

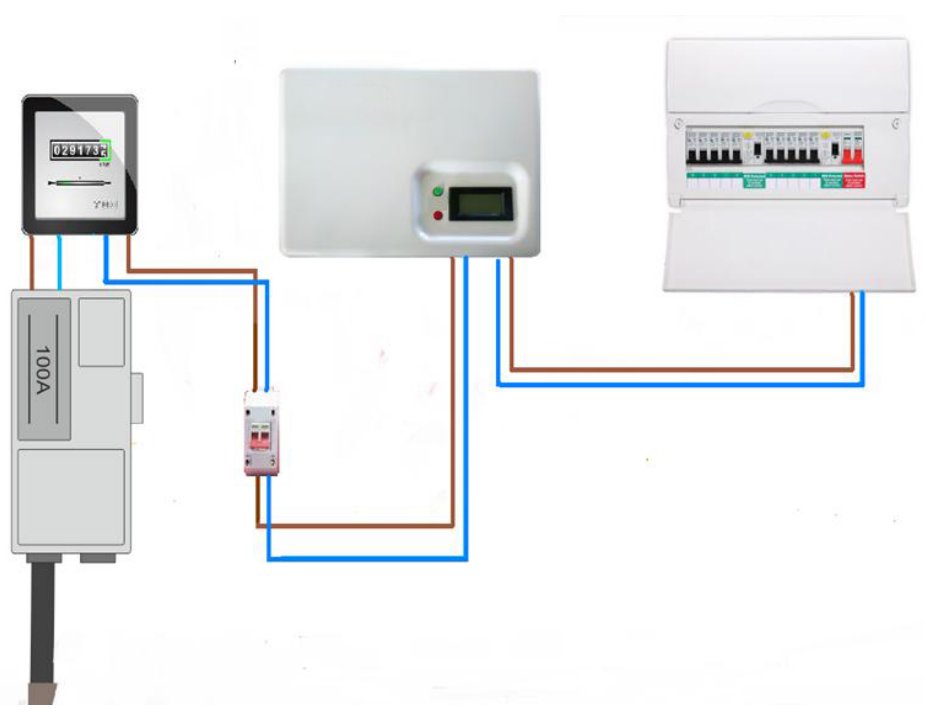

The voltage optimisations is connected in between the main isolator and the distribution board this will optimize thesupply into your home, lowering the voltage to the appliances.(See chart2.2)

chart 2.2

ChapterⅢ Installation and operation

The installation of the unit you must pay attention to the choice of installation location, good ventilation, properly configured load, selection the appropriate sized cables.

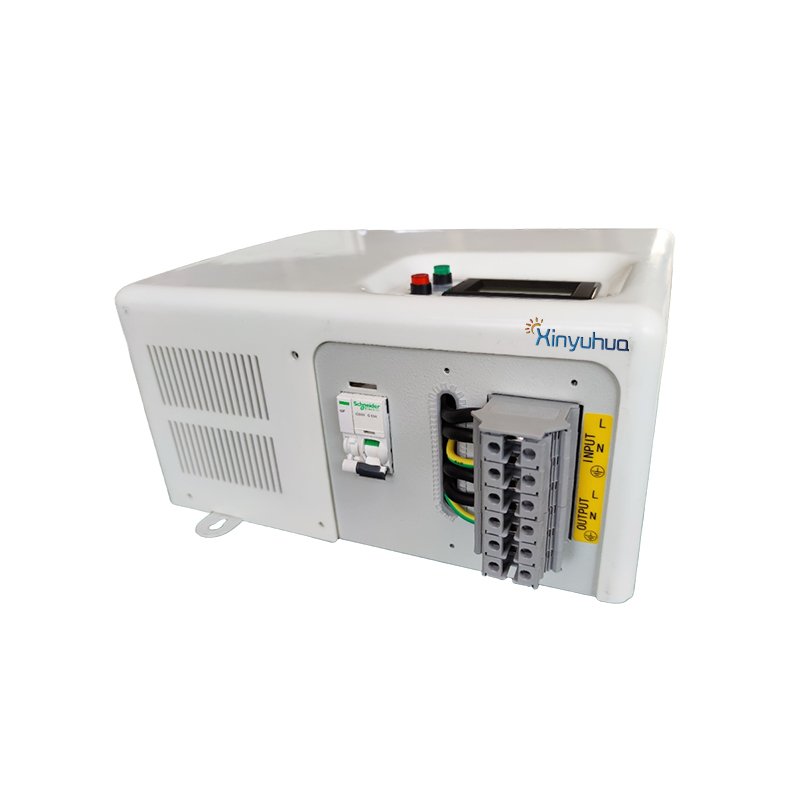

▲ Warnings：Please hold the base plate to install, the plastic cover bearing capacity is lower, do not use the plastic cover to handle the unit

Wire

Recommend cable sizes

Listed below are therecommended cross-section of the supply cables,

Cable recommended cross-sectional area are shown in Table 3.1）

Installatio

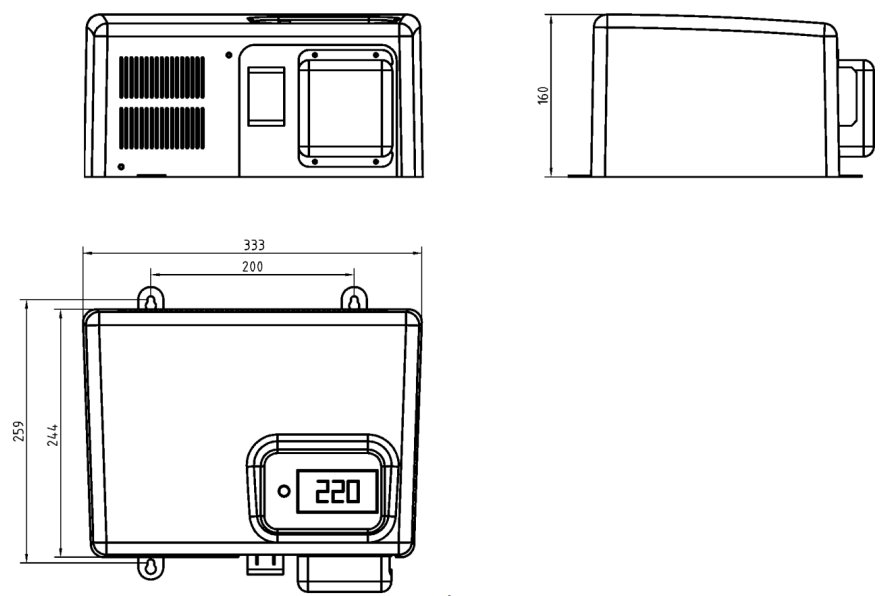

Outline and installation size(see chart 3.1)

chart 3.1

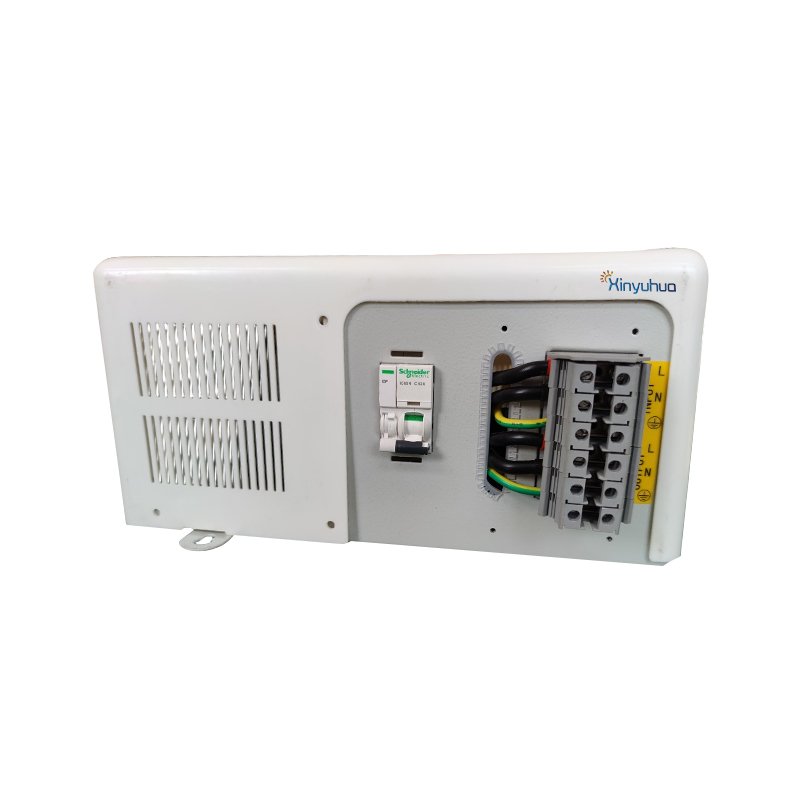

Connecting terminal

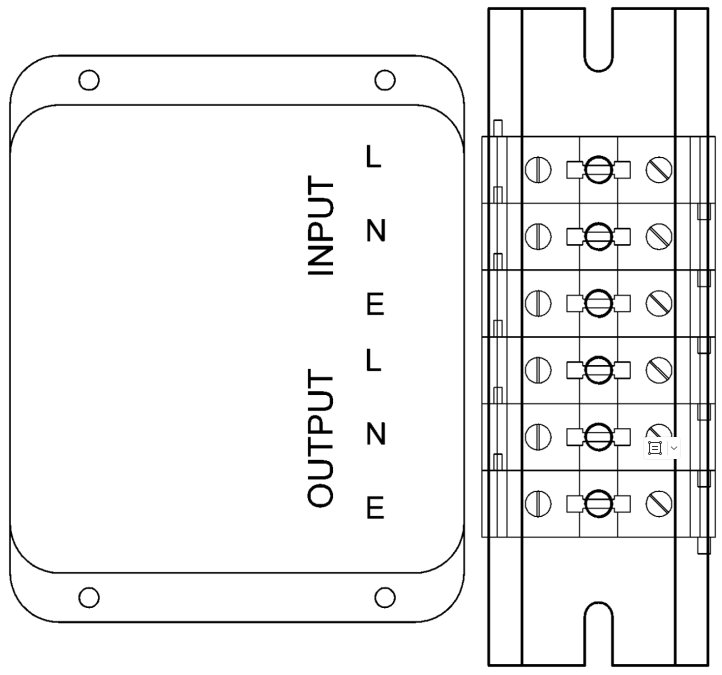

In accordance with the wiring as following chart (see chart 3.2)

Chart 3.2

Note:Check the power is isolated before commencing any work. Connect input/outputin accordance with the wiring as following chart (see chart 3.2).

Running

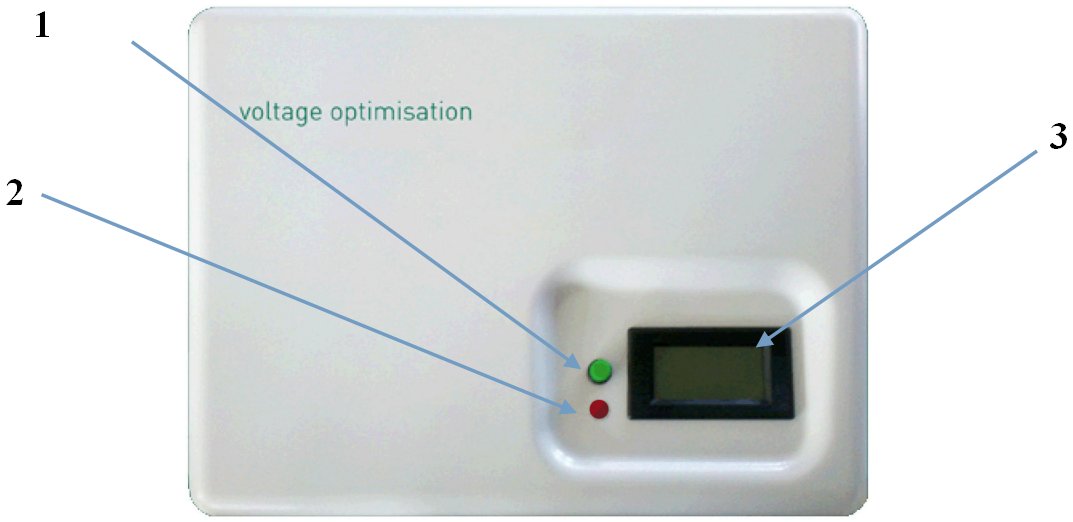

Components on PC-board Function Specification (see chart 3.3)

chart 3.3

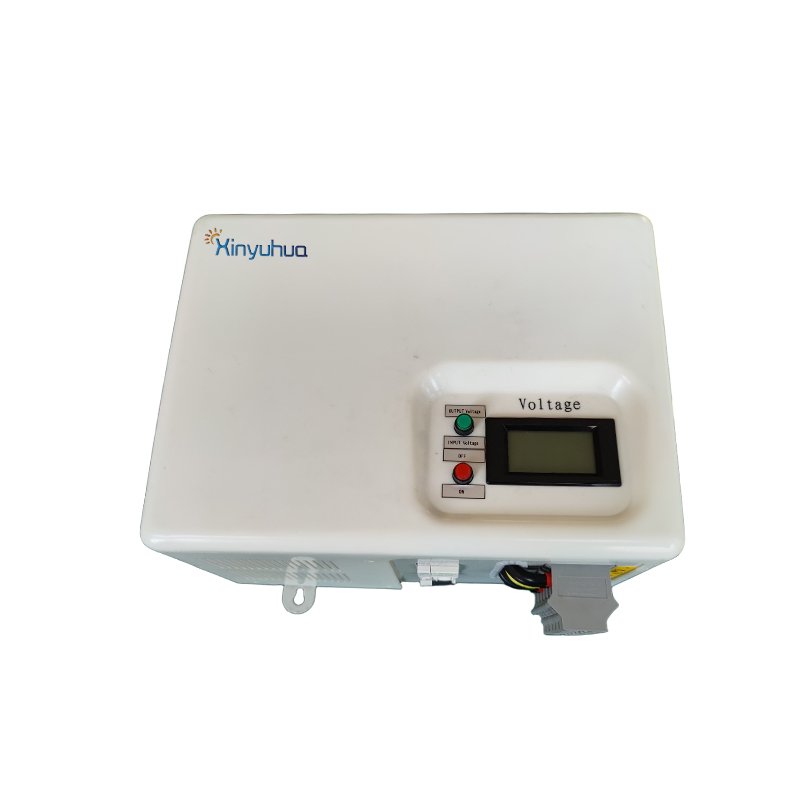

1. Button： button up ---display output voltage, button down--display input voltage

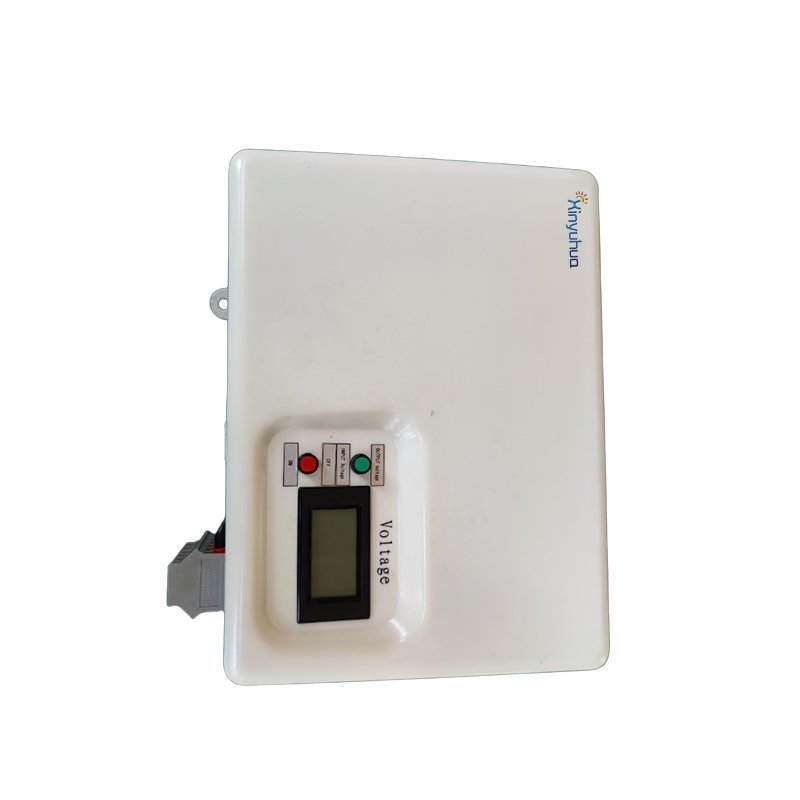

2. LCD display： display input and output voltage

3. Red button :Display screen on/off button (after the installation has been completed please ensure the screen is turned off and Explain to the tenant how to operate)

On/Off

1. With the optimiser wired correctly, the main isolator can be turned on to re-engergise the property

2. Isolating the main switch turns off the voltage optimisations and as a result loss of power to the property

Notes

Do not install more than one piece of optimizing equipment in your property

Under Voltage

The incoming supply will fluctuate constantly, if the voltage drops under the lower limit the voltage optimisation will automatically revert back to mains voltage.

Over Current

The voltage optimisation has a continuous rating off 55A; the transformer is rated to allow an over current for approximately 1 hour. After that time if the over current has not returned to its rated level the optimiserwill automatically revert to bypass.

Bypass Mode

This operation is automatically entered by the optimiser for reasons of protection. When in this state the supply voltage to the property will continue, However the voltage optimisation is currently not reducing the voltage at that time.

ChapterⅣ

Troubleshooting

ChapterⅤ Service Assurance

As our corporate users, you enjoy the following service:

1. Technical Support.

2. Upon receipt of notification to response within 24 hours.

3. 5 year manufactures warranty.

When you confirm the failure of equipment, please promptly contact us and provide the equipment model, serial number and complete description of the problem.

However, any of the following situations happened, are not included in the warranty:

1. Non-permitted by the company, went ahead with the repair and damage

2. Incorrect operation or use

3. Do not clean with chemicals

4. Abnormal environmental conditions exceed the specifications, resulting in damage

5. The deliberate damage

6. Natural disasters

Chapter VI  Installation Instructions

Electrical supply

We recommend the unit be used on properties with an incoming supply higher than 235V. The supply to your property must be fitted with a suitably rated isolator to allow the unit to be fitted.

Installation & Supply

Please read and understand these instructions before commencing with work.

Note; It is the responsibility of the electrician carrying out the work to ensure that the installation meets with the current version of bs7671 wiring regulations. During transit the unit will be subject to movement and vibration, these must be checked and re-tightened by the electrician carrying out the work. Failure to do so could result in failure of the unit and invalidate the products warranty.

1. Inspect the installation to confirm that is sound before any work is carried out. If any faults are present it is your legal obligation to notify the client of this.

2. Isolate the supply and prove it dead. If no isolator is fitted arrange for one to be fitted before commencing with any work.

3. Using the enclosed template mark and drill suitable mounting points at the desired location. Ensure that the unit is securely fixed.

4. Remove the incoming supply cable from the consumer unit. Find the best way to divert the cables to the terminals of the voltage optimisations.

5. Connect the incoming cables as per the chart below.The voltage optimisations needs to be earthed but we recommend that you do not remove any existing earth and instead out in a new one either from the M.E.T or the earth bar inside the consumer unit.

6. Connect the new cables to return the Line and Neutral to the consumer unit.

7. Check all connections for security and polarity

8. Carry out all tests for electrical safety in line with the current edition of BS7671

9. Carry out a voltage test at the furthest point from the consumer unit.

10. Record the serial number of your voltage optimisations and complete the warranty registration paper work

11. Issue minor works certificate of the installation

The voltage optimisations is designed to reduce the voltage of your home to a more efficient level. The MVO reduces your carbon footprint, saves energy and saves you money. Optimising the voltage of your home improves the performance of electrical items in your home.

The unit has a predefined range and this will be determined by your incoming supply. The MVO is housed in a rigid steel housing with a robust plastic cover. There are no user serviceable parts inside the enclosure

Chapter VII Integration with a Domestic Photovoltaic System

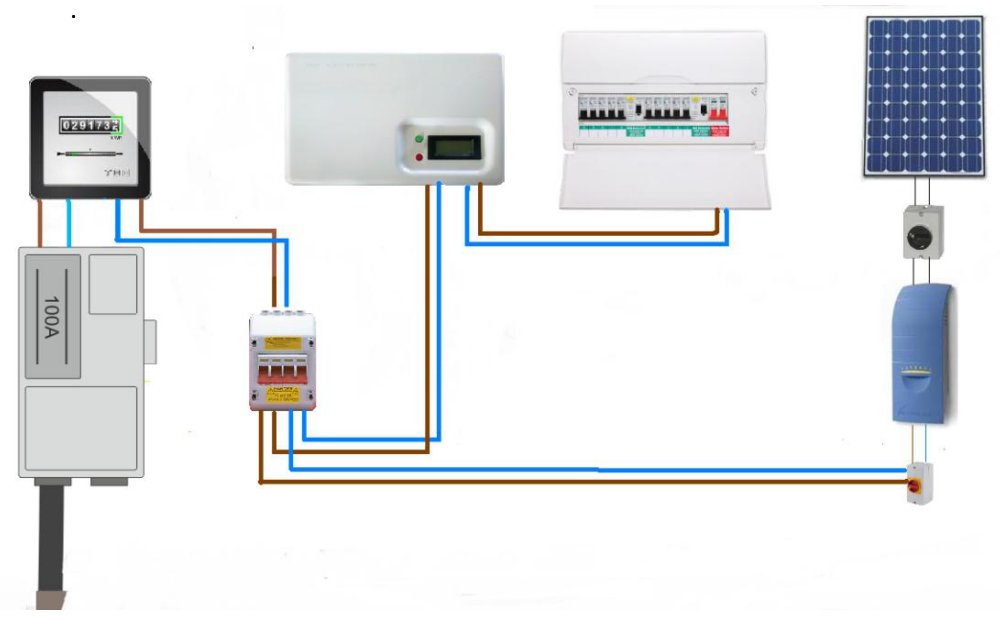

This is the typical configuration when the unit is to be installed alongside a domestic photovoltaic system

Disclaimer

We will always aim to provide a fully tested product which should without error for long periods of time. However, in the event of any tampering with the product we have the right to remove and product warranties. In addition, in such we are not liable for any damages occurred to your appliances or the voltage optimisations. Therefore its directors, distributors and Agents are not in any event or circumstances whatsoever and however arising be liable for any claims, damages , demands, losses, liabilities charges, and expense of whatever nature and however arising, including without limitation any incidental, punitive or consequential damages, loss of or damage to a property of whatever nature, loss of data, loss caused by an electronic or computer virus of whatever nature , loss of use, loss of income or profits, claims of third parties or any other losses of any kind, nature or character arising out of the misuse of our product.

NEVER OPEN THE PRODUCT.

Always ensure that any electrical work is carried out by an approved and qualified electricia
