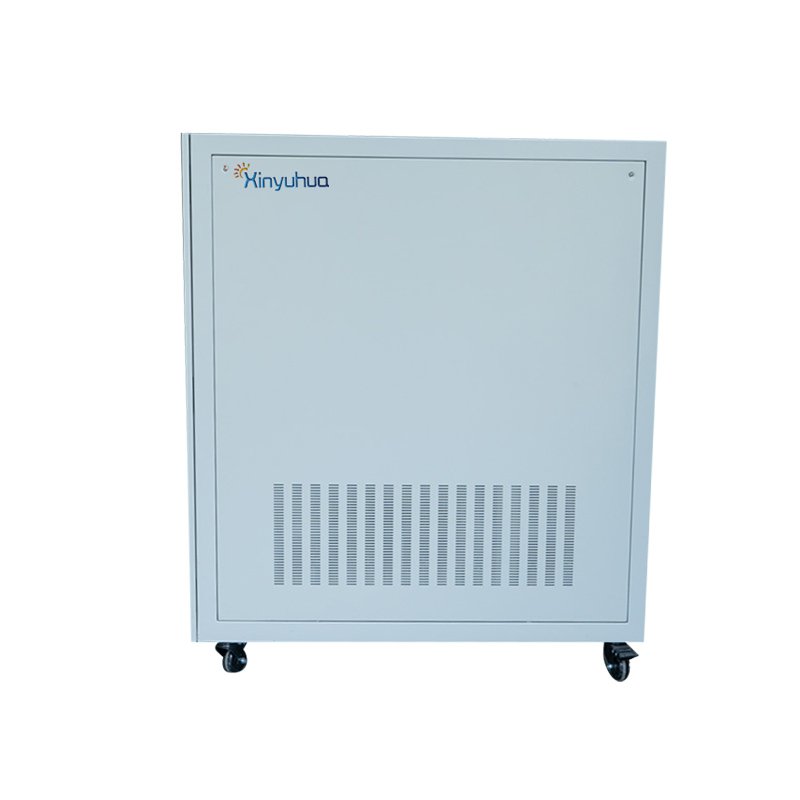

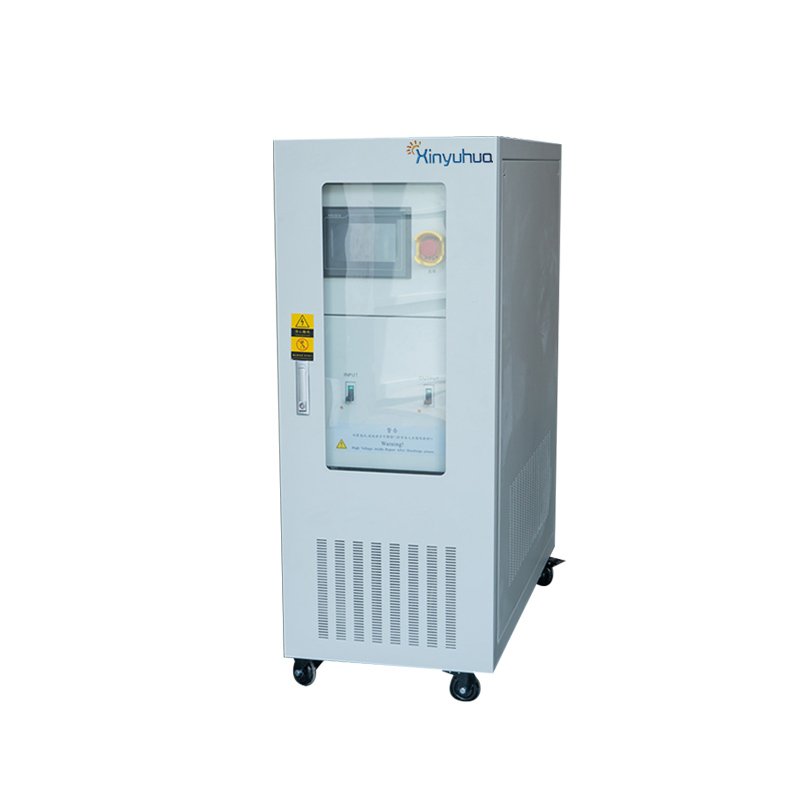

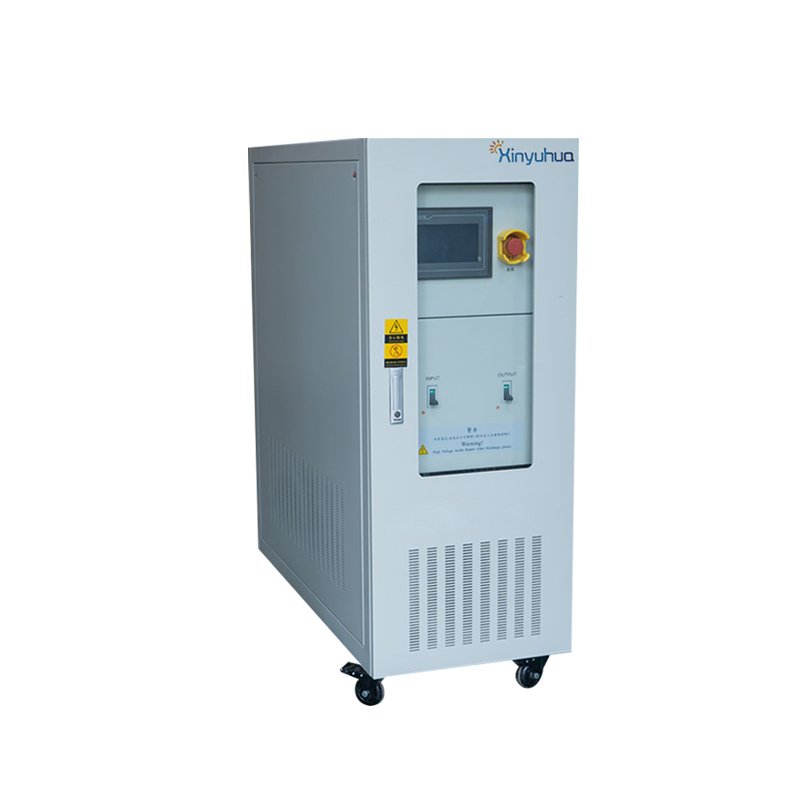

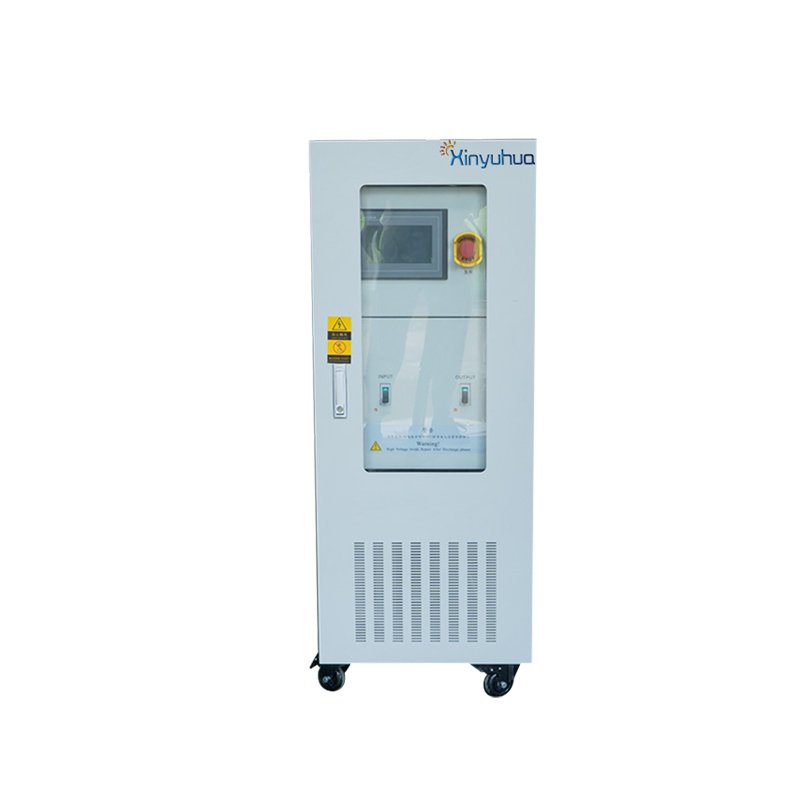

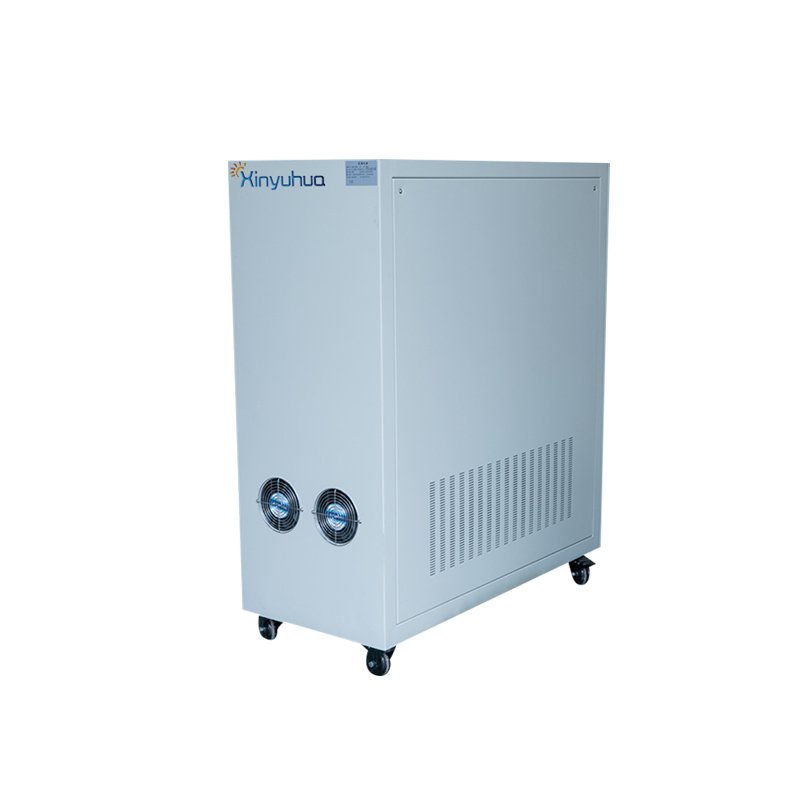

1. Dual CPU single chip intelligent control technology, Microcomputer control, humanized design
2. Output high quality pure sine wave AC power，With strong load capacity, wide application range
3. With perfect protection function, greatly improve reliability
4. Adopt CPU centralized control and SMT technology
5. Stable operation, low distortion, no noise, no pollution, strong resistance to load impact, simple operation, long life, Panel menu LCD/LED display working status
6. Three-stage charging function with battery type selection (optional)
7. Battery overvoltage, undervoltage protection
8. State grid automatic conversion (Optional)
9. It can automatically resume working after the undervoltage or over voltage change to normal
10. High conversion efficiency, high instantaneous power and low load loss
11. It can achieve the connection of generator and external battery

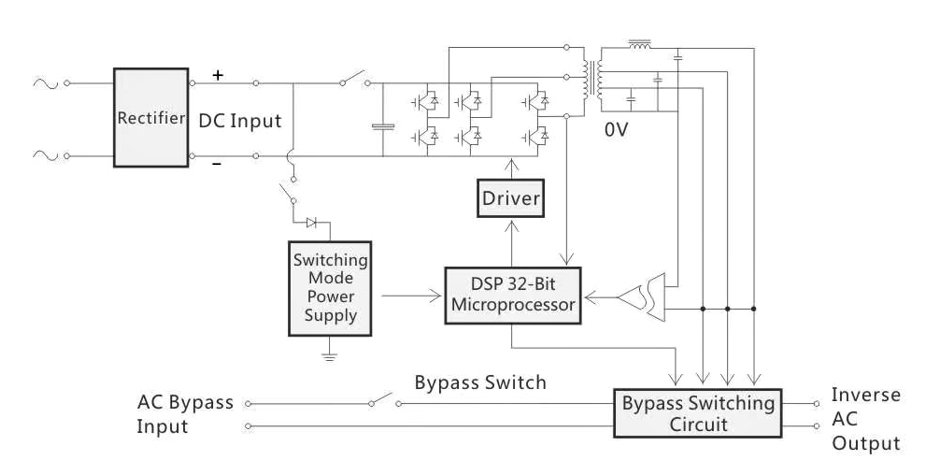

Diagram:
Off Grid Inverter 3kw-20kw three phase Description Technical Parameters:
| Mode | XYH-3000T | XYH-5000T | XYH-6000T | XYH-8000T | XYH-10000T | XYH-15000T | XYH-20000T |
| Rated power | 3kw | 5kw | 6kw | 8kw | 10kw | 15kw | 20kw |
| Max. discharge current | 81.7A | 136A | 163A | 109A | 136A | 163A | 136A |
| Input Battery Voltage | 48V | 48V | 48V | 96V | 96V | 120V | 192V |
| Input grid AC voltage | 380/400/415Vac 50/60hz | ||||||
| Output AC voltage | Three-phase 380/400/415Vac | ||||||
| Output current | 4.5A*3 | 7.6A*3 | 9A*3 | 12A*3 | 15A*3 | 23A*3 | 30A*3 |
| Output frequency | 50/60hz | ||||||
| Size(W*L*H)mm | 350*600*650 | 350*600*650 | 350*600*650 | 400*700*740 | 400*700*740 | 400*700*740 | 400*700*850 |
| Weight(Kg) | 73 | 83 | 90 | 100 | 125 | 143 | 150 |
| General data | |||||||
| Conversion time | 20ms~1s | ||||||
| Nominal voltage | ±1%（Steady state load），±3%（Load fluctuation） | ||||||
| Output waveform | Pure sine wave | ||||||
| Current peak ratio | 3：1 MAX | ||||||
| THD | Linear load < 3%; nonlinear load < 5% | ||||||
| Standby power | <20W | ||||||
| Overload capacity | >120%10s; >150%:5ms | ||||||
| Protective function | ＜±5% | ||||||
| Inversion efficiency | >94% | ||||||
| Balance load voltage | ＜±1%；＜±5%（Unbalanced load voltage） | ||||||
| Protect function | Undervoltage protection of battery,state grid over voltage and undervoltage,inverter overload.overvoltage,over temperature,short circuit,automatic recovery after over voltage and undervoltage changing to normal. | ||||||
| communication interface | RS232，（485、Remote Control,Options） | ||||||
| Operating temperature | -10～60℃ | ||||||
| Relative humidity (non condensing) | 30%～90% | ||||||
| Operating altitude | ＜1000Meters（every increased 1000Meters decrease power1%，highest5000Meters） | ||||||
| （maximum） | |||||||
| cooling method | Forced air cooling | ||||||
| Noise | ≤55dB（Depending on load and temperature）Distance to machine1M | ||||||
| Easy maintenance | The front / upper / left and right sides can be opened. | ||||||
Off Grid Inverter 30kw-200kw three phase Description Technical Parameters:
| Mode | XYH-30000T | XYH-50000T | XYH-60000T | XYH-80000T | XYH-100000T | XYH-150000T | XYH-200000T |
| Rated power | 30kw | 50kw | 60kw | 80kw | 100kw | 150kw | 200kw |
| Max. discharge current | 163A | 182A | 206A | 213A | 266A | 399A | 531A |
| Input Battery Voltage | 240V | 360V | 384V | 384V | 384V | 384V | 384V |
| Input grid AC voltage | 380/400/415Vac 50/60hz | ||||||
| Output AC voltage | Three-phase 380/400/415Vac | ||||||
| Output current | 45A*3 | 75A*3 | 91A*3 | 121A*3 | 151A*3 | 227A*3 | 303A*3 |
| Output frequency | 50/60hz | ||||||
| Size(W*L*H)mm | 600*700*1360 | 600*800*1800 | 600*800*1800 | 700*800*1960 | 700*800*1960 | 700*800*2200 | 800*1000*2200 |
| Weight(Kg) | 298 | 380 | 390 | 470 | 578 | 700 | 1400 |
| General data | |||||||
| Conversion time | 20ms~1s | ||||||
| Nominal voltage | ±1%（Steady state load），±3%（Load fluctuation） | ||||||
| Output waveform | Pure sine wave | ||||||
| Current peak ratio | 3：1 MAX | ||||||
| THD | Linear load < 3%; nonlinear load < 5% | ||||||
| Standby power | <20W | ||||||
| Overload capacity | >120%10s; >150%:5ms | ||||||
| Protective function | ＜±5% | ||||||
| Inversion efficiency | >94% | ||||||
| Balance load voltage | ＜±1%；＜±5%（Unbalanced load voltage） | ||||||
| Protect function | Undervoltage protection of battery,state grid over voltage and undervoltage,inverter overload.overvoltage,over temperature,short circuit,automatic recovery after over voltage and undervoltage changing to normal. | ||||||
| communication interface | RS232，（485、Remote Control,Options） | ||||||
| Operating temperature | -10～60℃ | ||||||
| Relative humidity (non condensing) | 30%～90% | ||||||
| Operating altitude | ＜1000Meters（every increased 1000Meters decrease power1%，highest5000Meters） | ||||||
| （maximum） | |||||||
| cooling method | Forced air cooling | ||||||
| Noise | ≤55dB（Depending on load and temperature）Distance to machine1M | ||||||
| Easy maintenance | The front / upper / left and right sides can be opened. | ||||||
Off Grid Inverter 300kw-3000kw three phase Description Technical Parameters:
| Model | XNSA480- 300KS | XNSA480- 500KS | XNSA480- 800KS | XNSA480- 1000KS | XNSA480- 1500KS | XNSA480- 3000KS | |
| DC input | Input rating voltage(Vdc) | 480 | |||||
| DC input | Input rating current(A) | 694 | 1157 | 1851 | 2314 | 3437 | 6875 |
| DC input | Input DC voltage allowing range(Vdc) | 420~800 | |||||
| AC output | Output rating capacity(KW) | 300 | 500 | 800 | 1000 | 1500 | 3000 |
| AC output | Output rating voltage and frequency | AC380V Vac, 50Hz(Three-phase four-wire) | |||||
| AC output | Output rating current(A) | 455.8 | 759.7 | 1215.5 | 1519.4 | 2279 | 4558 |
| AC output | Output voltage precision(V) | AC380V±3% | |||||
| AC output | Output frequency precision(Hz) | 50hz±0.05 | |||||
| AC output | Wave distortion(THD) | ≤1% | |||||
| AC output | Dynamic response | 3% | |||||
| AC output | Power factor(PF) | 0.8leading-1-0.8lagging, adjustable | |||||
| AC output | Overload ability | 150%,10 seconds | |||||
| AC output | Crest factor(CF) | 3:01 | |||||
| AC output | Inverted efficiency | 95% | |||||
| Insulation strength | 1500 Vac,1minute | ||||||
| Noise (1meter) | ≤55dB | ||||||
| Using condition temperature | -25℃~+55℃ | ||||||
| Humidity | 0-95%，non-condensing | ||||||
| Altitude (m) | ≤6000 | ||||||
| Protection function | Input reversing protection,input low-voltage protection,output over-load protection,output short-circuit protection, over-heat protection | ||||||
